Samsung The Frame's One Connect Box Explained

How is a Samsung Frame TV with a One Connect Box different from other TVs and what's the wiring diagram look like?

What is a One Connect Cord?

Samsung Frame tv one connect cord one connect box

Samsung One Connect Cord 15m

The Samsung One Connect Cord is a discreet cord that functions similarly to a fiber optic cord. It is designed to bring audio, video, and power to a Samsung Frame TV. The cord connects from the back of the TV to the One Connect Box, which serves as a centralized hub for all cables. This innovative connection type allows users to simplify and organize the typically messy arrangement of HDMI and audio cords that run to the back of many TVs.

The standard One Connect Cord is 5 meters and there is an optional 15 meter One Connect Cord available as well as an In-Wall One Connect Cord



What is a One Connect Box?

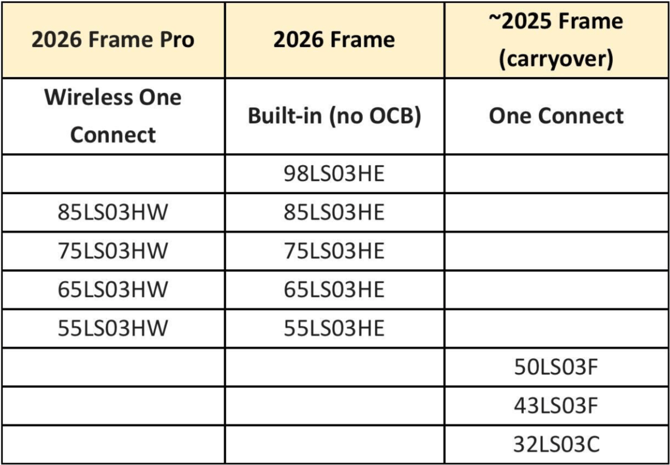

The One Connect Box is included with Samsung Frame TVs to provide a single connection hub for all cables in one place so the signals can be brought to the TV via a One Connect Cord.

Connect all your favorite input devices such as cable boxes, Apple TV, DVD Players and more via the following ports.

  • (4) HDMI inputs
  • (1) Optical Digital Audio Out
  • (1) Cat 5 Ethernet Port
  • (1) Coax Input
  • (3) USB Input
  • (1) Ex-Link



Samsung One Connect Wiring Diagram

Say goodbye to the tangled mess of cords that usually come with traditional TVs, where multiple cords connect directly to the TV. With the One Connect Box, you can simplify things by bringing all the signals to the TV through a single One Connect cord. Enjoy a clutter-free setup and a streamlined viewing experience.

One-Connect-box-Wiring-diagram

Follow Us on Instagram

one-connect-box explainedHere's one of our many highlights on Instagram where we explain more about the One Connect box and how it works.

Come see why 140,000+ people around the world follow us for all things Samsung The Frame!  We are truly the #1 Source of information and tips and trick on Samsung The Frame.

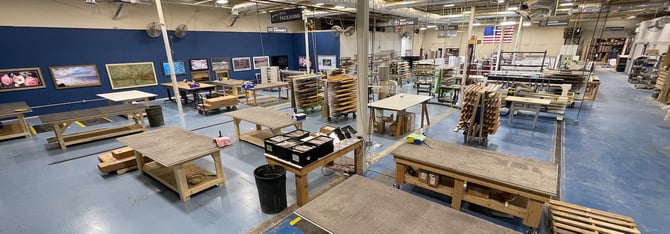

We even have 28 of them hanging in our factory!

See more of  @DecoTVFrames on Instagram











ProductionFloor-Oct2022_web_1600



YouTube Tutorials on Samsung The Frame

YouTube deco tv frames Samsung The FrameWe regularly publish new videos about Samsung The Frame TVs to answer many FAQs to help you get the most of your TV. Be sure to subscribe to our channel to learn more.





Samsung Frame One Connect Box Dimensions

Samsung-One-Connect-Box-comparisonSamsung The Frame has two versions of their One Connect Box. The larger of the two is used for the 43" - 75" TV sizes and the smaller is for the 32" TV sizes.

One Connect Box for 43", 50", 55", 65" & 75" TVs

The Samsung One Connect Box measures 13 11/16" x 2 5/8" x 6" when including the antenna jack. 5.5" without accounting for the antenna jack.

Samsung-One-Connect-box-dimensions

One Connect Box for 32"

Samsung-One-Connect-box-32-dimensions



Samsung The Frame Installation Process

This brief overview shows how the Samsung Frame TV installs in combination with the No-Gap Wall Mount and a Deco TV Frame.

2018-2020 Samsung Frame TVs Installation

2021-2022 Samsung Frame TVs Installation
