How to install our premium aluminum Deco Alloy TV Frames onto a Samsung Frame TV.
NEW INSTRUCTIONS BOOKLET - JUST RELEASED!
Based on valuable feedback from users, the assembly instructions for the Alloy Collection of frames will now include updated instructions. Please note that the frame you receive may have been packaged before these new instructions were available in print, but you can access a digital copy here. We believe these new instructions will be more helpful than the previous version.
* Click top right as you flip through the web version to view in full screen
The Deco Alloy product line is a masterpiece, meticulously crafted using the finest aluminum, specifically designed to bring out your inner artist. With a plethora of color options at your disposal, finding the perfect variant to match your unique aesthetic preferences is an absolute breeze. And to make your life even easier, we've included step-by-step video instructions below to guide you through the installation process.
BEFORE YOU INSTALL
If you happen to be rocking one of those basic magnetic snap-on Samsung Frame Bezels, you'll need to bid farewell to that bezel before you can work your magic with our Deco TV Frames or Alloy Bezels.

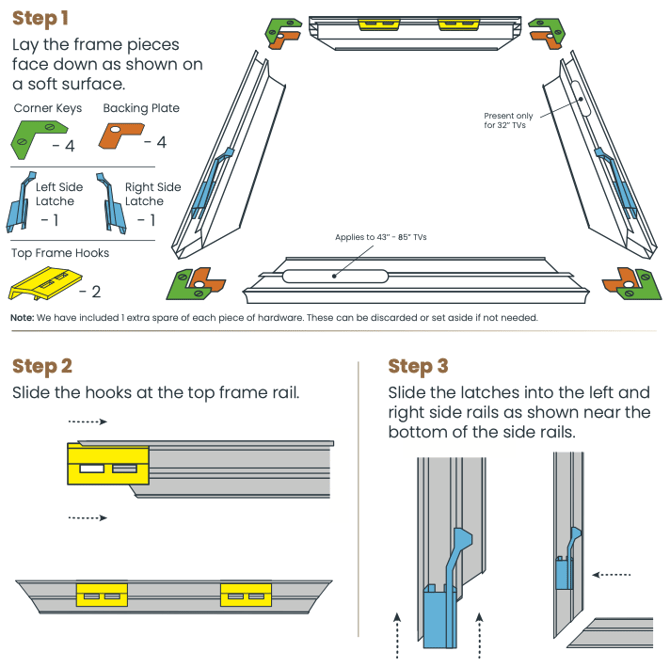

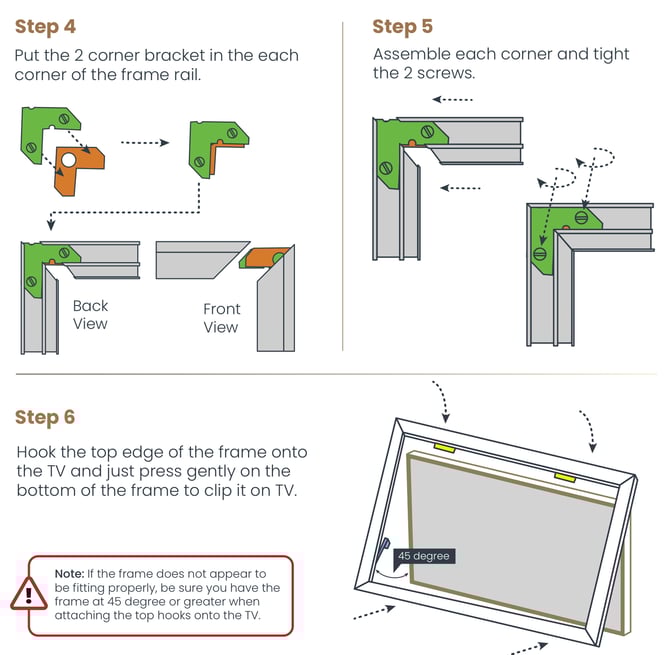

Instructions
Instructions Changes
Based on user feedback, if your sheet includes a solid yellow part, please disregard the image below and refer to the image above the blue callout for accurate instructions on how to install the top hooks of the frame.
OLD INSTRUCTIONS IMAGE FOR TOP HOOK :

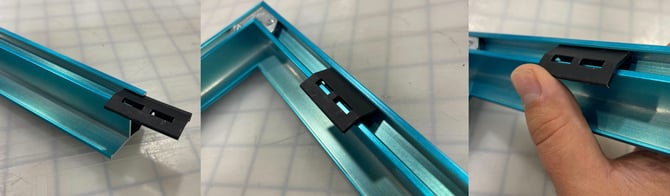

Sometimes, even the best of us can get a little confused when it comes to orienting the top hooks correctly in the top rail of the frame. But don't worry, we've got your back! To give you a clearer understanding of how those Top Frame Hooks should slide into the rail, we've included some handy photographs for your reference.

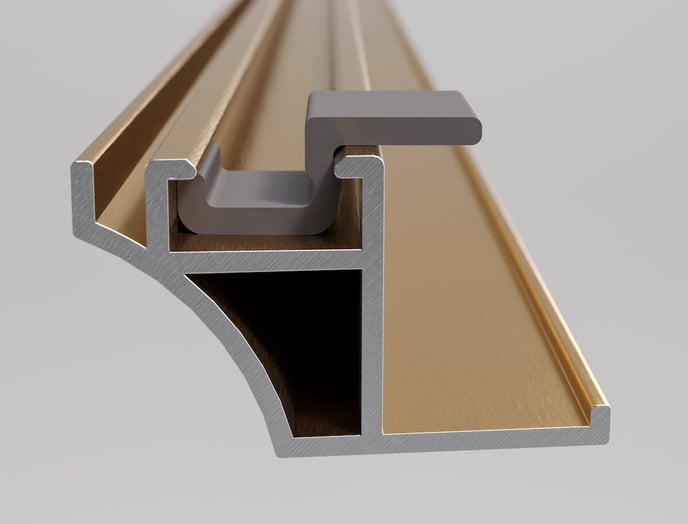

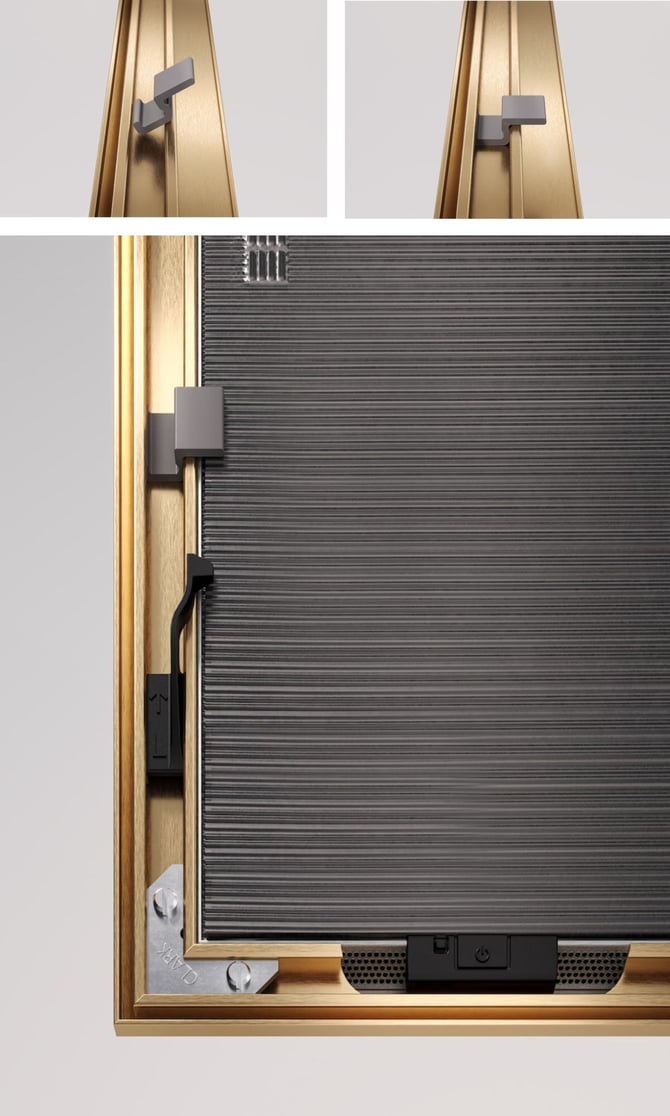

Optional Alloy Locking Tabs
In some instances we have received reports of the Alloy frames not holding tightly to the bottom of the frame. We have recently released some new locking tabs as a test to address this on an as needed basis. Initial feedback on these locking tabs has been positive and we are considering including them with all frames made. Meanwhile, to order a free set of these tabs CLICK HERE
NOTE: The locking tabs are ONLY compatible with 2021-2025 Samsung Frame TV models and will not work with older model TVs.
Troubleshooting:
Experiencing any issues with your frame? Rest assured, we have compiled a list of frequently asked questions to provide you with the answers you need OR just give us give our 5 Star Rated Customer Service team a call and they can help. 978-396-9600.
